Groq LPU Architecture – A Comprehensive Guide for Coders & AI Practitioners
The rise of large language models (LLMs) and real-time AI applications has put huge demands on inference hardware. Enter the Language Processing Unit (LPU) from Groq — a purpose-built processor designed from the ground up for inference rather than being a repurposed GPU. In this guide we break down how the Groq LPU architecture works, the design principles behind it, its key building blocks, and why it matters for you.
Why a new architecture? The legacy GPU challenge
Traditional GPUs (and CPUs) were designed for graphics or general compute tasks. They carry lots of features like caches, speculative execution, out-of-order execution, multi-level memory hierarchies etc. These features introduce non-determinism, scheduling overhead, complex memory bottlenecks and make it harder to optimise for inference workloads. blog.codingconfessions.com+1
In contrast, many inference tasks (especially LLMs) are dominated by linear algebra (matrix multiplies, tensor adds) and exhibit predictable compute patterns. Recognising this, Groq designed the LPU to optimise specifically for those patterns. Groq+1
6
Four Core Design Principles of the Groq LPU
The architecture is guided by four foundational principles:
- Software-First
From Groq’s description: the compiler and software mapping are written before the chip architecture, allowing software to have full control of scheduling, data movement, and resource usage. Groq+1 - Programmable Assembly-Line Architecture
The LPU uses “conveyor belts” inside the chip (and between chips) to move data and instructions between SIMD function-units. Every step is scheduled by software, minimizing hardware-side variability. Groq+1 - Deterministic Compute & Networking
Every stage, from instruction execution to data movement, is predictable. There are no variable caches or dynamic scheduling causing jitter. This enables precise performance guarantees. Groq+1 - On-Chip Memory
The LPU incorporates large memory (SRAM) on-chip (e.g., ~80 TB/s bandwidth quoted) to avoid external memory bottlenecks that GPUs face (e.g., HBM off-chip etc). This dramatically increases data throughput. Groq+1

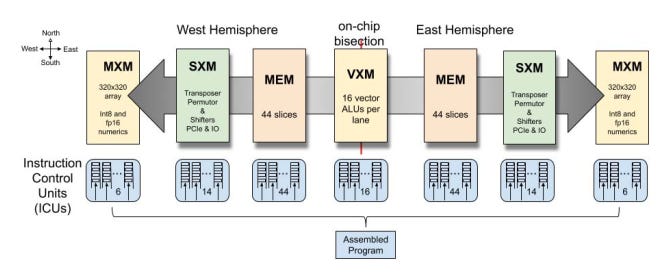

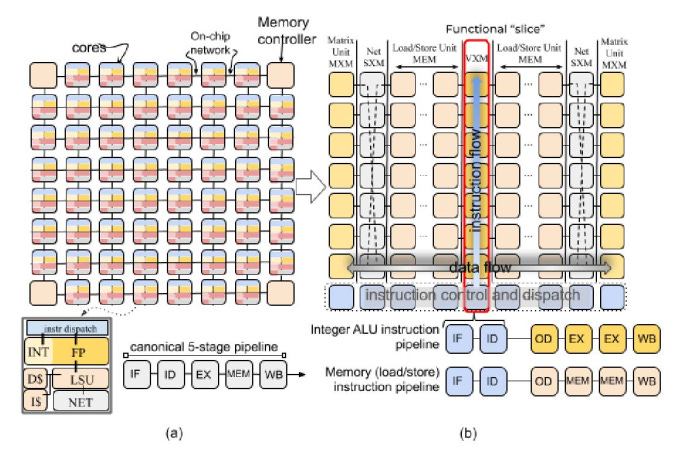

Key Architectural Building Blocks
Here’s how the LPU is built from the ground up:
| Component | Function | Why it matters |
|---|---|---|
| Tensor Streaming Processor (TSP) | The fundamental chip unit inside the LPU, handling many vector/tensor operations in parallel. blog.codingconfessions.com+1 | Enables high compute density for tensor workloads. |
| Conveyor-belt data routing | Within chip and between chips, data moves via scheduled paths rather than cache/arbiter systems. Groq+1 | Reduces latency and avoids bottlenecks. |
| Compiler/Scheduler | A sophisticated compiler maps workloads (models) onto the hardware, schedules instructions, data movement and chip-to-chip networking. blog.codingconfessions.com+1 | Ensures software-first design and optimal utilization. |
| On-Chip SRAM Memory Fabric | Large memory bandwidth on-chip (~80 TB/s quoted) and minimal use of off-chip memory. Groq | Cuts memory access latency, improves energy efficiency. |
| Chip-to-Chip Interconnect | LPU chips link together forming shared resource fabric (via Groq RealScale™ etc) for large-model workloads and scalability. Groq+1 | Enables large-scale model execution with near-linear scalability. |
6
What this means in practice
Performance & Efficiency
- Because the architecture is specialised for inference (especially LLMs), Groq claims much higher efficiency (e.g., up to ~10× better energy per token than traditional GPU systems). Groq
- Deterministic scheduling enables predictable latency – very useful for real-time applications. Groq
- Big models: The chip-to-chip interconnect allows Groq to scale up to very large parameter-size models (MoE, 400 B+ parameters) without typical GPU bottlenecks. Groq
Developer/Software Implications
- Because the architecture emphasises software control, you as a developer or coder can treat model mapping, scheduling, and data movement in a more predictable way than on GPU architectures.
- This may simplify deployment of large-models in production – fewer surprises in latency or performance variability.
- It also means that to exploit those gains, frameworks and compilers (Groq’s or your own) need to map to this architecture effectively.
Advantages & Disadvantages
✅ Advantages
- Extremely high throughput and low latency for inference workloads.
- Better energy efficiency and resource utilisation compared to generic hardware.
- Predictable performance (deterministic), which matters for production systems.
- Designed for scale: supports large-model inference across multiple chips seamlessly.
❌ Disadvantages / Considerations
- Being a specialised architecture, support/ecosystem might be less mature compared to standard GPUs.
- Porting models and frameworks might require adaptation or use of Groq’s tooling.
- For workloads not dominated by the linear algebra/tensor heavy profile, advantages might be less pronounced.
- Hardware access might be limited (depending on your region, budget, availability) compared to widely available GPUs.
When should you consider using Groq’s LPU?
- You’re deploying large-language models (LLMs) in production and need low latency and high throughput inference.
- You need predictable latency (real-time systems) rather than variable GPU latencies.
- You’re building applications with very large models or model ensembles (Mixture of Experts, 400B+ parameters) and need hardware that scales almost linearly.
- You care about energy-efficiency and operational cost (e.g., at data-centre scale).
- You’re comfortable working with emerging hardware/stack and adapting your deployment to the architecture.
Future Outlook
Groq continues to evolve its process node (moving to 4 nm) and further refine the architecture. As model sizes grow, inference demands rise, and new model architectures (e.g., MoE, sparsity) proliferate, specialised hardware like LPUs may become increasingly important. The general-purpose GPU advantage will likely diminish for inference workloads where the hardware is not designed specifically for that use-case.
Conclusion
The Groq LPU represents a paradigm shift in how we think about inference hardware. By designing from the ground up for AI inference — emphasising software control, predictable execution, memory bandwidth, and scalability — Groq offers an architecture well-suited to the demands of modern large-language models. For practitioners, understanding this architecture provides insight into the next generation of AI deployment and hardware optimisation.
Whether you are a backend engineer deploying inference pipelines, a data scientist stretching into production, or a DevOps/AI infrastructure lead evaluating hardware, the Groq LPU has major implications. It’s not simply “faster GPU” — it’s a specially tailored architecture for the AI era.
